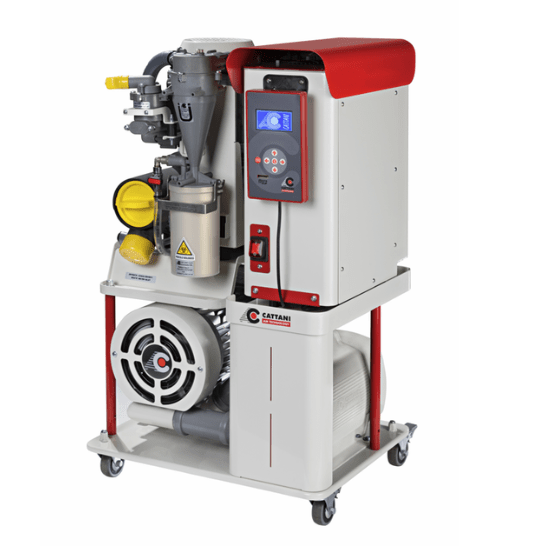

Cattani TURBO SMART TS5

TURBO SMART TS5 Dental Suction Unit for 5 Chairs

NEW SUCTION MOTOR IMPELLER DESIGN (DUAL CURVATURE)

• • Producing MORE AIR FLOW PERFMANCE with LESS SPEED & ENERGY
  • Turbo SMART B at 4 chairs – speed = 110 Hz – 1700 l/min
  • Turbo SMART TS5 at 5 chairs – speed = 100 Hz – 2000 l/min

IMPROVED CENTRIFUGAL SEPARATOR FLOW DYNAMICS

• • To allow higher air flow volumes to support the 5 chair capacity, the internal air passages of the centrifugal separator have been improved to reduce friction and restrictions to allow a greater volume of air to flow.

BUILT IN HEPA H14 FILTER STANDARD

• • Reduces Exhaust Air Duct complications which often occur in many applications, especially shopping centres, and high rise buildings – thus reducing installation costs.

INDEPENDENT ACTIVE-ON COOLING FAN

• • Unlike the previous suction motor shaft driven cooling fan that varies in speed directly with the suction motor, ACTIVE-ON cooling is an independent electric cooling fan that delivers constant and consistent cooling over the suction motor, improving ventilation efficiency.

CONTROL PANEL CONNECTIONS

• • All connections to the control panel are now plug-in.  This adds significant convenience and time saving when installing and servicing equipment as the hardware components are plug and play.

CASTOR WHEELS

• • Maneuverability has also been significantly improved with the addition of lockable castor wheels to the chassis.
