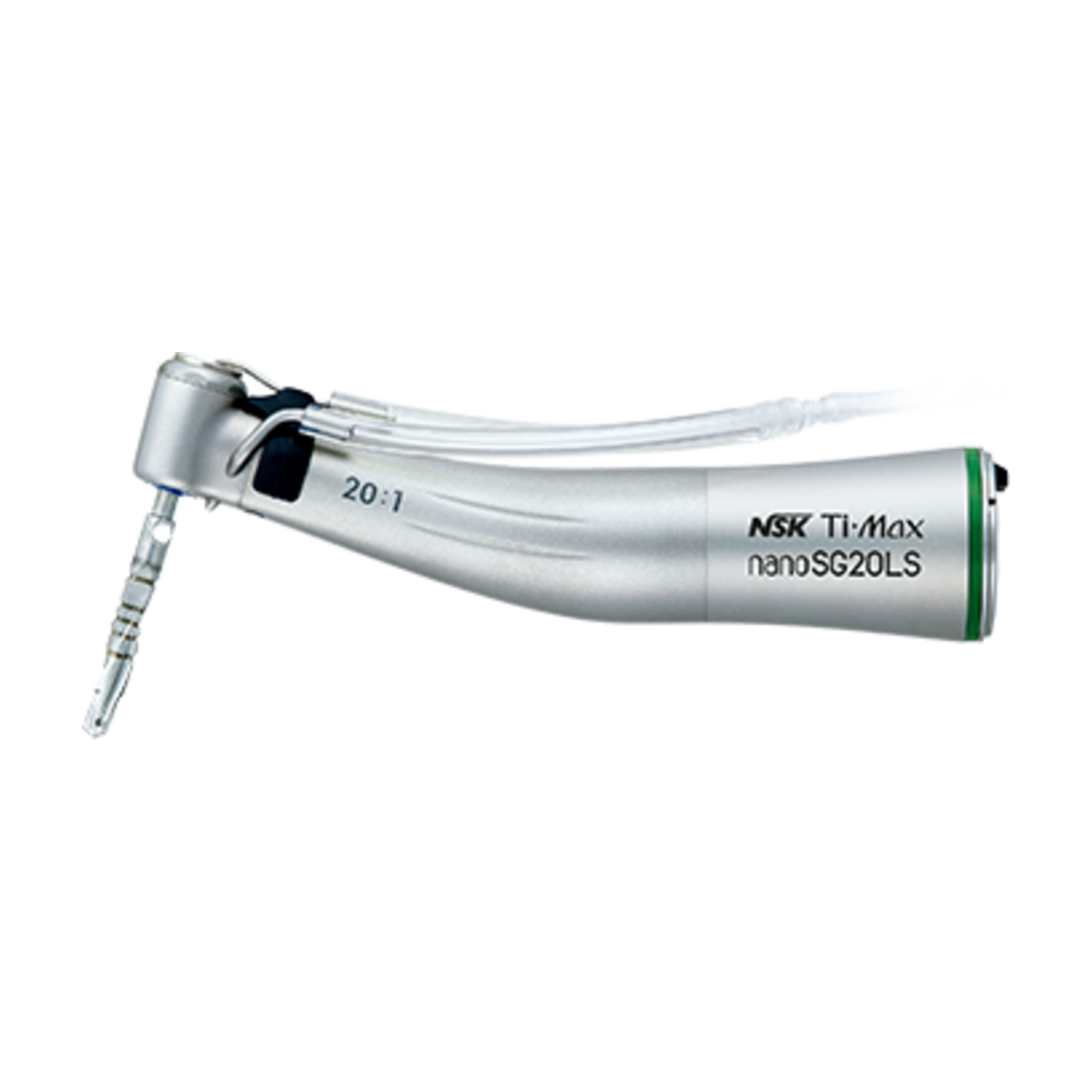

NSK Ti-Max nanoSG20LS Titanium Surgical Optic Handpiece 20:1 Reduction

The NSK Ti-Max nanoSG20LS is a titanium surgical optic handpiece with 20:1 reduction, designed for procedures requiring controlled speed and torque. Its cellular glass optics support visibility, while internal and external cooling options accommodate Kirschner and Meyer systems. A push-button chuck simplifies instrument changes during clinical workflows.

Key benefits

• 20:1 reduction supports controlled surgical operation
• Delivers up to 80 Ncm torque and 2,000 min^-1 speed
• Cellular glass optics support visibility at the treatment site
• Internal and external cooling provides workflow flexibility
• Titanium body with DURAGRIP coating
• Double sealing system and push-button chuck

What is the NSK Ti-Max nanoSG20LS used for?

It is a surgical optic handpiece for dental procedures requiring 20:1 speed reduction, controlled torque and cooling. Confirm compatibility with your surgical motor and irrigation setup before ordering.

Specifications

• Brand: NSK
• Model: Ti-Max nanoSG20LS
• Material: Titanium
• Body coating: DURAGRIP
• Gear ratio: 20:1 reduction
• Maximum speed: 2,000 min^-1
• Maximum torque: 80 Ncm
• Cooling: External and internal, Kirschner and Meyer
• Optics: Cellular glass optics
• Chuck: Push button
• Sealing: Double sealing system
