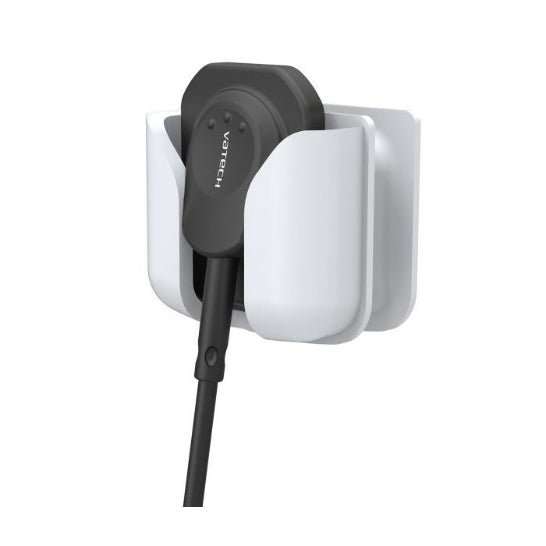

White wall-mounted device with black cable, featuring the Vantech brand.

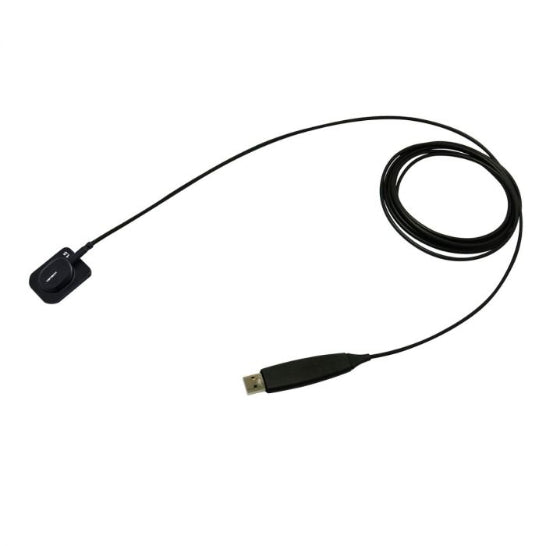

Endoscope with USB connection on a white background
White wall-mounted device with black cable, featuring the Vantech brand.
Endoscope with USB connection on a white background

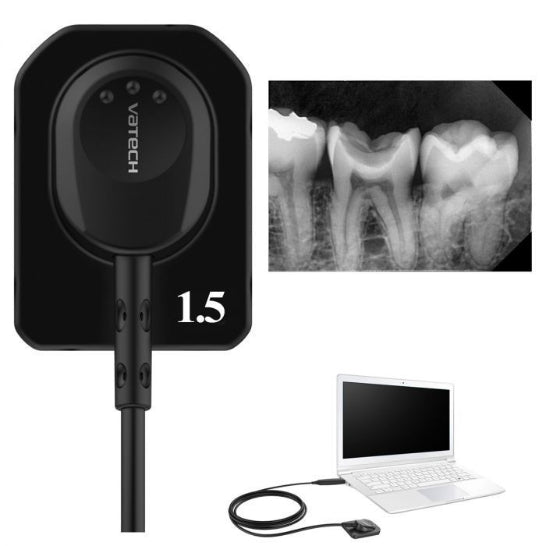

Vatech EzSensor Classic Size 1.5
New

Vatech EzSensor Classic Size 1.5

Vatech EzSensor Classic Size 1.5

Vendor: Vatech

Type: Sensor

EzSensor Classic

YOUR PARTNER FOR DIGITAL CLINIC

* Ultra-Slim for Easy Positioning
* Patient Oriented Design.
* Trustworthy Image

4.8 mm, Ultra-slim Design for Easy Positioning

Slim CMOS ensures that patients are as comfortable as possible

  • Placing and positioning a sensor in the patient’s mouth is still challenging. Over the years, digital sensor technology has improved to achieve patient comfort.
  • VATECH R&D Center tested the thickness which minimizes the most pain, and led in technology while using a CMOS chip.

Patient Oriented Design

Rounded corner design allows maximum comfortable placement against soft tissue

  • Patients feel pain because delicate oral mucosa gets pressure from a hard sensor corner. Rounded corner can reduce that pain. But it has a possibility of reducing active image area. This is the technology that sustains the perfect balance between them
  • Ergonomically designed in 3 different sizes to meet the needs of various cases. The rounded & cut edges provide the best possible comfort for patients. Even more, Vatech’s unique size 1.5 fits almost all patients
  • The advantage of a digital sensor is to provide fast and efficient workflow. Direct USB type enables immediate image transfer and highly portable capture.
  • EzSensor Classic rated at IP68, the highest level of the Ingress Protection [IP] : Complete Protection Against Dust and Water

Trustworthy Image

EzSensor Classic provides the image for accurate diagnosis and treatment planning.

  • EzSensor Classic provides you stable quality through high sensitivity sensor technology. Under a wide range of exposure settings even including old X-ray sources, you can capture diagnosable and consistent images.
  • Thanks to the high contrast, it could be possible to look inside different density(opacity) in detail. Moreover you can distinguish interproximal carries from the image easily.

Powerful Consultation

EzCodi, The complete solution for your consultation.

  • “One animation is worth a thousand words!” EzCodi, 50 sets of clinical case animation make your consultation more powerful and help patients understand better.



Specifications (EzSensor Classic: IOS-U10IB / IOS-U15IB / IOS-U20IB / IOS-U10VB / IOS-U15VB / IOS-U20VB

Detector CMOS
Pixel Size 29.6 μm
Theoretical Resolution 17 lp/mm
Dynamic Range 12 bit
Active Area (WxL] Size 1.0 _ 20 x 30mm
Size 1.5 _ 24 x 33mm
Size 2.0 _ 26 x 36mm
Dimensions (WxLxT] Size 1.0 _ 25.4 x 36.8mm (1.00 x 1.45 inch)
Size 1.5 _ 29.2 x 39.5mm (1.14 x 1.55 inch)
Size 2.0 _ 31.3 x 42.9mm (1.23 x 1.69 inch)
Thickness 4.8 mm (0.19 inch)
Cable Length 2.7 m







$7,150.00
$7,150.00
Tax included.
